รายละเอียดสินค้า :

Feature	Code	Description
SEAL TYPE	_	(0) STADARD BUNA-NITRILE SEALS
VALVE TYPE	DG5V	(DG5V) SOLENOID CONTROLLED, PILOT OPERATED DCV WITH 350 BAR RATING
INTERFACE	-8	(8) ISO 4401-8 INTERFACE, SIZE 8
PILOT VALVE	-S	(S) STANDARD PERFORMANCE PILOT VALVE (DG4V-3S)
REDUCER MODULE	_	(0) NOT REQUIRED
GUAGE PORT THREAD TYPE	_	(0) GAUGE PORT 0.4375?-20UNF, SAE THREAD
SPOOL TYPE	-6	(6) P BLOCKED, A & B TO T
SPRING ARRANGEMENT	C	(C) SPRING CENTERED
BUILD ORIENTATION	_	(0) STANDARD BUILD
MANUAL OVERRIDE	_	(0) PLAIN OVERRIDE IN SOLENOID ENDS ONLY
RESPONSE	_	(0) STANDARD LOW SHOCK MODELS
SPOOL CONTROL	_	(0) NOT REQUIRED
SPOOL MONITORING SWITCH	_	(0) NOT REQUIRED
PILOT SUPPLY	_	(0) INTERNAL PILOT PRESSURE
PILOT DRAIN	_	(0) EXTERNAL PILOT DRAIN
CHECK VALVE	_	(0) NOT REQUIRED
SOLENOID IDENTIFICATION	-M	(M) FLAG WITH STANDARD BUILD AS PER ANSI B93 9
PILOT SPOOL MONITORING SWITCH	_	(0) NO SPOOL POSITION MONITORING SWITCH
COIL TYPE	-U	(U) ISO4400, DIN43650 CONNECTOR
SOLENOID INDICATOR LIGHT	_	(0) NO SOLENOID INDICATOR LIGHT
DIODE	_	(0) NO DIODE
COIL VOLTAGE	-H	(H) 24V DC 30 WATT
ORIFICE PLUG P	_	(0) NOT REQUIRED
ORIFICE PLUG A	_	(0) NOT REQUIRED
ORIFICE PLUG B	_	(0) NOT REQUIRED
DESIGN CODE	-10	(10) DESIGN NUMBER
SPECIAL FEATURES	_	NONE

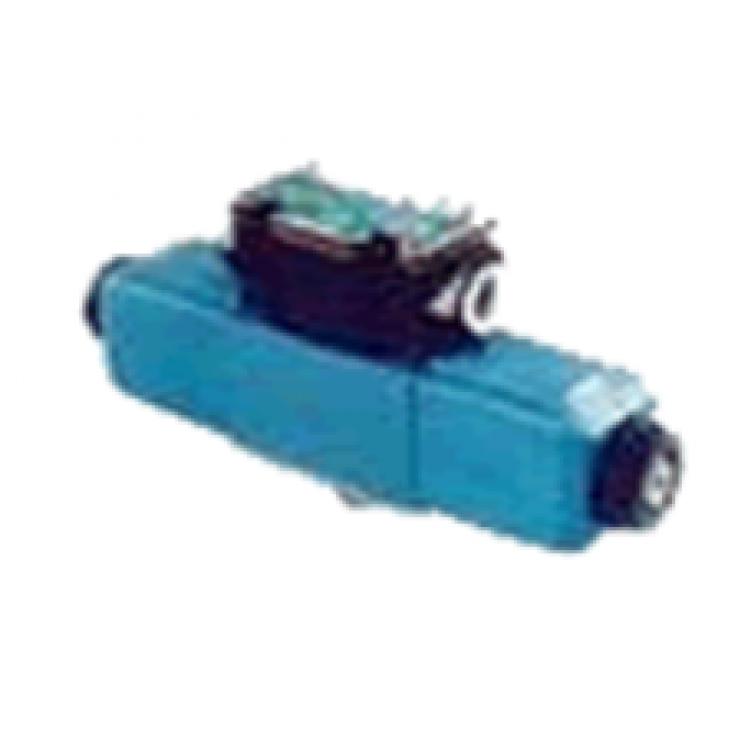

Vickers DG5V8 S 6C M U H 10
