รายละเอียดสินค้า :
| Feature | Code | Description |
|---|---|---|
| SEAL | _ | STANDARD SEALS |
| SERIES | V2010 | V2010 |
| INTEGRAL VALVE OPTIONS | _ | OMIT FOR STANDARD |
| MOUNTING | -1 | 2 BOLT FLANGE (SAE "B" SIZE PAD) |
| INLET PORT CONNECTIONS | F | 4 BOLT FLANGE |
| SHAFT END PUMP SAE RATED CAPACITY | 11 | 42 L/MIN (11 US GPM) |
| NO 1 OUTLET PORT | S | 1.062 - 12 UN-2B THD |
| COVER END PUMP SAE RATED CAPACITY | 2 | 8 L/MIN (2 US GPM) |
| NO 2 OUTLET PORT (COVER END) | S | 1.062 - 12 UN-2B THD. |
| SHAFTS | -1 | STRAIGHT KEYED |
| POSITION OF OUTLET | CC | WITH NO.1 OUTLET INLINE WITH INLET, AND NO.2 OUTLET 45+ CW FROM INLET |
| ORIFICE NO. FLOW RATE | _ | NOT SPECIFIED |
| RELIEF VALVE SETTING | _ | NOT SPECIFIED |
| DESIGN | -12 | DESIGN 12 |
| SHAFT ROTATION | -R | RIGHT HAND - CLOCKWISE |
| DESIGN SPECIAL 1 | _ | NONE |
| DESIGN SPECIAL 2 | _ | NONE |

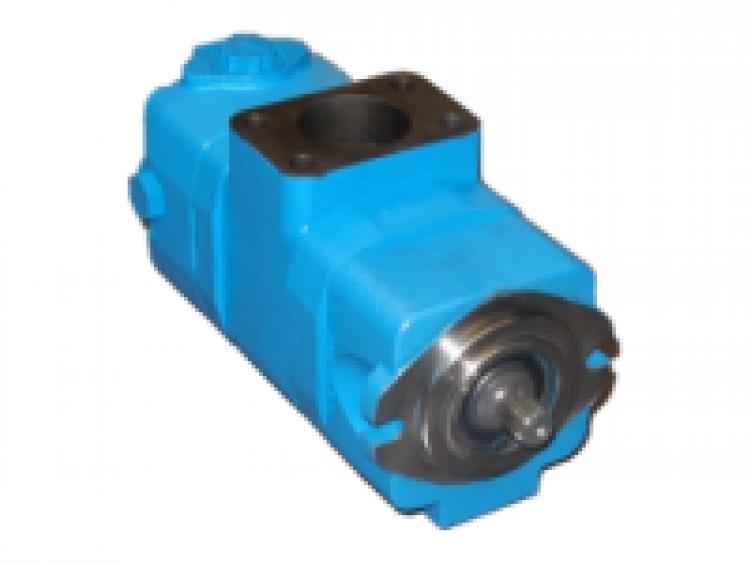

Pumps - Vane Pump - V10/V20 Series
- ผู้ผลิต: Vickers
- รหัสสินค้า: 850073-3
- สถานะสต๊อก: มีสินค้าในสต๊อก
Short Description
ป้ายกำกับ: vickers
